CARACTERÍSTICAS DE HARDWARE

ESTÁNDARES Y PROTOCOLOS           IEEE 802.3, 802.3U, 802.3AB, 802.3X, 802.1Q, 802.1P, CSMA/CD, TCP/IP

INTERFACE      32-BIT PCI EXPRESS

1 10/100/1000MBPS RJ45 PORT

MEDIOS DE RED         10BASE-T: UTP CATEGORY 3, 4, 5 CABLE (MAXIMUM 100M)

EIA/TIA-568 100Ω STP (MAXIMUM 100M)

100BASE-TX: UTP CATEGORY 5, 5E CABLE (MAXIMUM 100M)

EIA/TIA-568 100Ω STP (MAXIMUM 100M)

1000BASE-T: UTP CATEGORY 5, 5E CABLE (MAXIMUM 100M)

LED      STATUS

ESTÁNDARES INALÁMBRICOS           IEEE802.3, IEEE802.3U, IEEE802.3AB, IEEE802.3X

VELOCIDAD DE DATOS           10/100/1000MBPS FOR HALF-DUPLEX MODE

20/200/2000MBPS FOR FULL-DUPLEX MODE

INDICADOR LED          1000MBPS LINK/ACT, 100MBPS LINK/ACT, 10MBPS LINK/ACT

DIMENSIONES 3.1 × 4.8 × 0.8 IN (78.5 × 120.8 × 21.5MM)

CONTROL DE FLUJO   IEEE 802.3X FLOW CONTROL (FULL-DUPLEX)

OTROS

CERTIFICACION          CE, FCC, ROHS

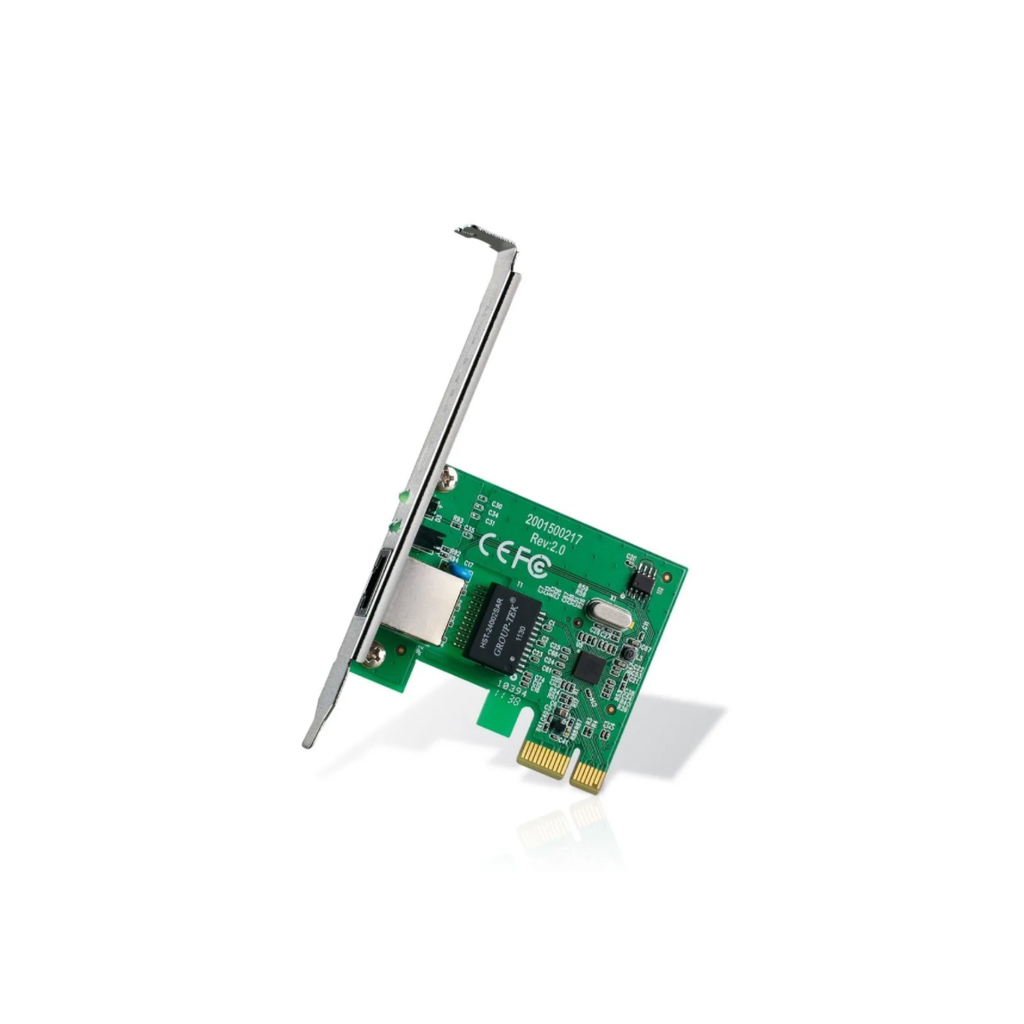

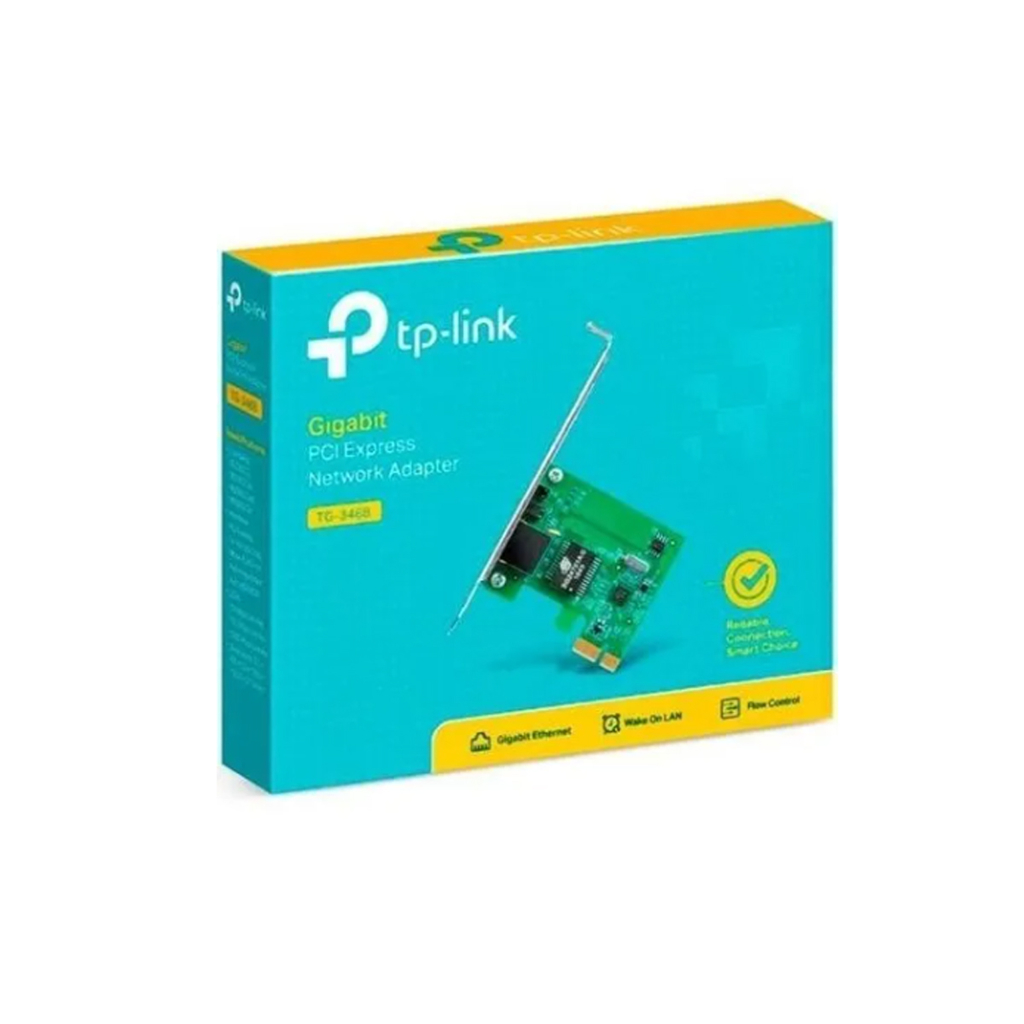

CONTENIDOS DEL PAQUETE  GIGABIT PCI EXPRESS NETWORK ADAPTER TG-3468

RESOURCE CD

QUICK INSTALLATION GUIDE

REQUISITOS DEL SISTEMA      WINDOWS 7(32/64BITS),WINDOWS VISTA(32/64 BITS),WINDOW XP(32/64BITS)

AMBIENTE      OPERATING TEMPERATURE: 0℃~40℃ (32℉~104℉)

STORAGE TEMPERATURE: -40℃~70℃ (-40℉~158℉)

OPERATING HUMIDITY: 10%~90% NON-CONDENSING

STORAGE HUMIDITY: 5%~90% NON-CONDENSING
