Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support

High Quality Audio Capacitors and Audio Noise Guard Design

RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support

Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software

Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP

APP Center Including EasyTune™ and Cloud Station™ Utilities

PROCESADOR

AM4 Socket: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

CHIPSET

AMD B450

MEMORIA

4 x DDR4 DIMM sockets supporting up to 128 GB of system memory

Dual channel memory architecture

Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

GRÁFICOS INTEGRADOS

Integrated Graphics Processor:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)
* Support for HDMI 2.0 version and HDCP 2.2.(Note)

Maximum shared memory of 16 GB
(Note) Actual support may vary by CPU.

AUDIO

Realtek®Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

WIRELESS COMMUNICATION MODULE

Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 4.2

Support for 11ac wireless standard and up to 433 Mbps data rate
* Actual data rate may vary depending on environment and equipment.

PUERTOS DE EXPANSIÓN

1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

1 x PCI Express x16 slot, running at x1 (PCIEX1_2)

1 x PCI Express x1 slot
(The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.)

(Note) Actual support may vary by CPU.

INTERFAZ DE ALMACENAMIENTO

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
* Actual support may vary by CPU.
* Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.

4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.

USB

CPU:

4 x USB 3.1 Gen 1 ports on the back panel

Chipset:

2 x USB 3.1 Gen 1 ports available through the internal USB header

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

CONECTORES INTERNOS DE E/S

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x CPU cooler LED strip/RGB LED strip header

1 x RGB LED strip header

2 x addressable LED strip headers

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x serial port header

1 x Clear CMOS jumper

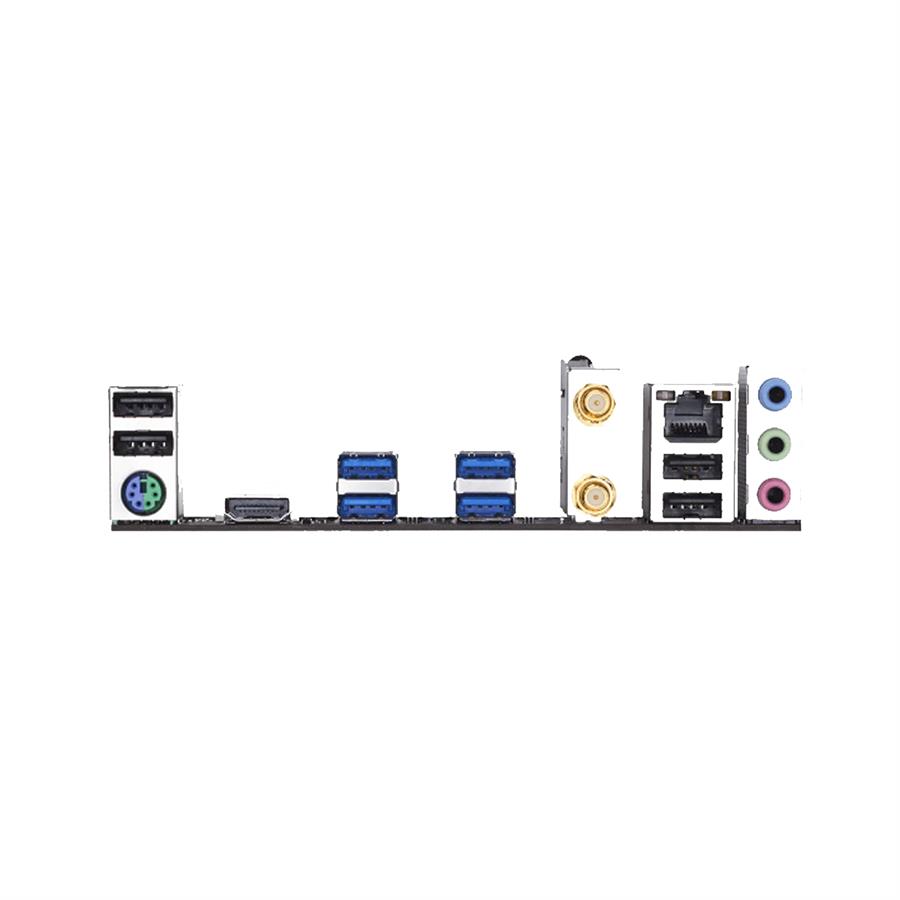

CONECTORES DEL PANEL TRASERO

1 x PS/2 keyboard/mouse port

1 x HDMI port

4 x USB 3.1 Gen 1 ports

4 x USB 2.0/1.1 ports

2 x SMA antenna connectors (1T1R)

1 x RJ-45 port

3 x audio jacks
